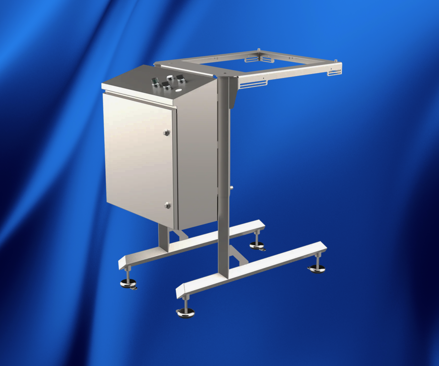

Cleanline Rack Air

Handcrafted in Denmark

Reliability and efficiency in your production environment.

Handcrafted in Denmark using stainless steel, the Cleanline Rack Air features a cost-effective, low-maintenance, and hygienic design, ensuring reliability and efficiency in your production environment.

Technical
Specifications

Easy Integration with a Small Footprint
The small footprint enables the Cleanline Rack Air to be integrated into any existing packaging lines, boasting a capacity of up to 120 trays per minute (depending on tray specifications).

Handcrafted in Denmark using stainless steel, the Cleanline Rack Air features a cost-effective, low-maintenance, and hygienic design, ensuring reliability and efficiency in your production environment.

Max short circuit current (Ik max) 6 kA
Voltage for valves 24 V DC
Air consumption 300 L (120 tray/minute)
Air pressure 6 Bar
Operational temperature 32°F-95°F/0°C-60°C
Stock temperature 14°F-140°F/-10°C-60°C
Humidity 10%-90%
Noise level < 80 dB (A)
Steel quality EN 1.4301, AISI 304
Weight of machine Approx. 55 kg
Tray length – max length 360 mm
Tray width – max width 280 mm
Infeed height 1000 mm +/- 350 mm
Outfeed height 1000 mm +/- 350 mm
Power supply 1×100-240 VAC+N+PE
Power consumption 0.5 A
Max fuse 10 A
Frequency 1000 mm +/- 350 mm
Automated Tray Handling

Versatile Tray Denesting Designed To Handle Any Product With Precision

Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.

By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow—no matter the complexity of your packaging.

Optimize Your Line
Precision Engineering Engineered for Performance, Built for Reliability
